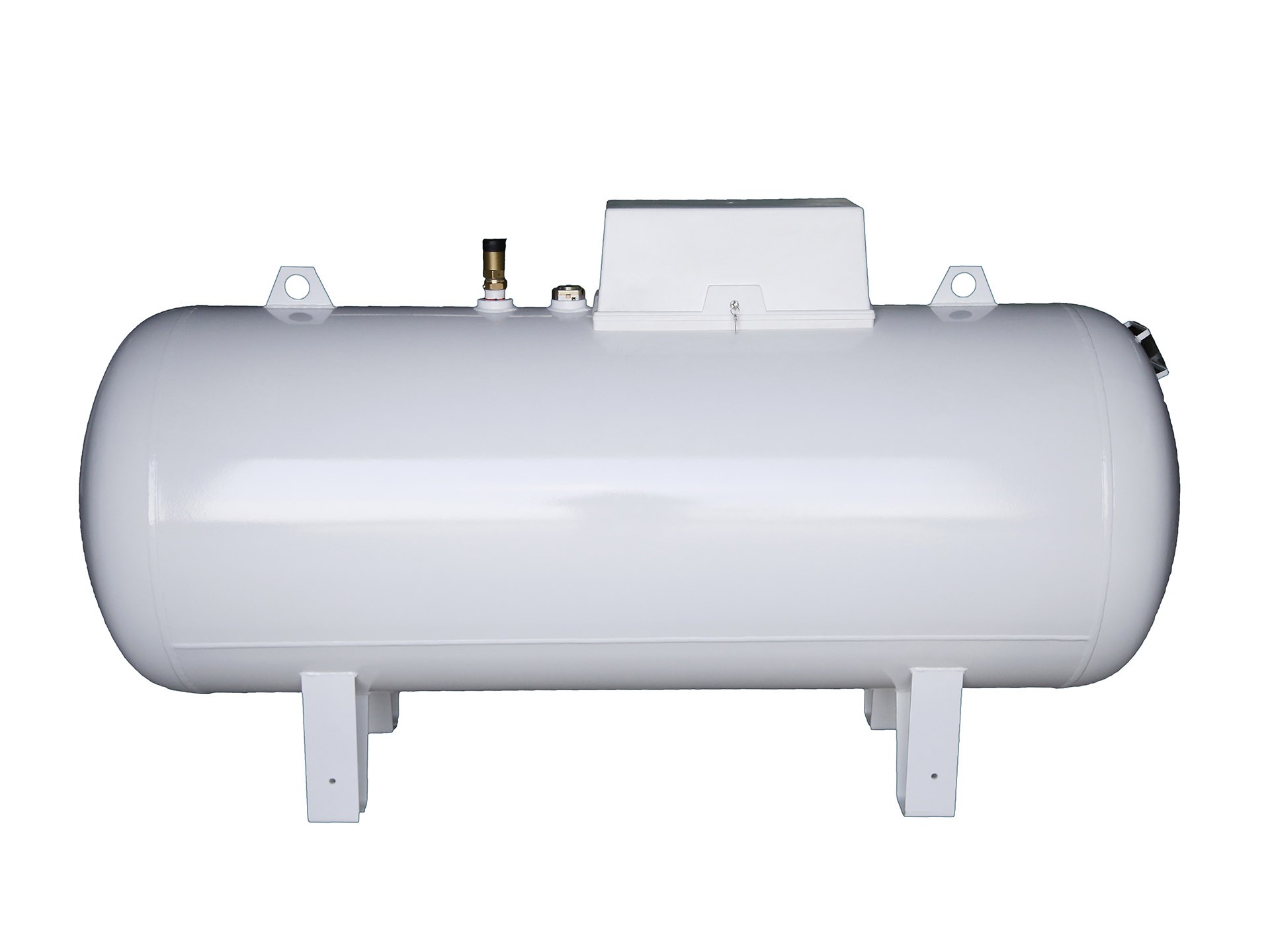

Industrial LPG Storage Tanks

Stationary LPG Storage Tanks Engineering

CFM Export supplies industrial-grade stationary LPG Storage Tanks engineered for bulk gas filling plants, commercial distribution terminals, and industrial combustion infrastructures. Available in both aboveground and underground variants, our stationary pressure vessels utilize high-tolerance automated submerged arc welding (SAW) technologies to guarantee complete structural safety profiles over extensive service decades.

Engineering Parameters & Classifications

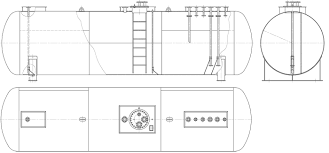

• Capacity Grid Matrix: Standard production volumes ranging from 5 m³ up to 250 m³+ (custom structural drawings available).
• Surface Preservation Engineering: Aboveground units treated with high-reflectivity epoxy-polyurethane solar shield systems; underground tanks coated with high-dielectric polyurethane layers to prevent cathodic corrosion.
• Design Pressures: Standard operational parameters rated at 17.16 bar design pressure or configured to ASME specifications under 250 psi criteria.

Certified Quality Controls

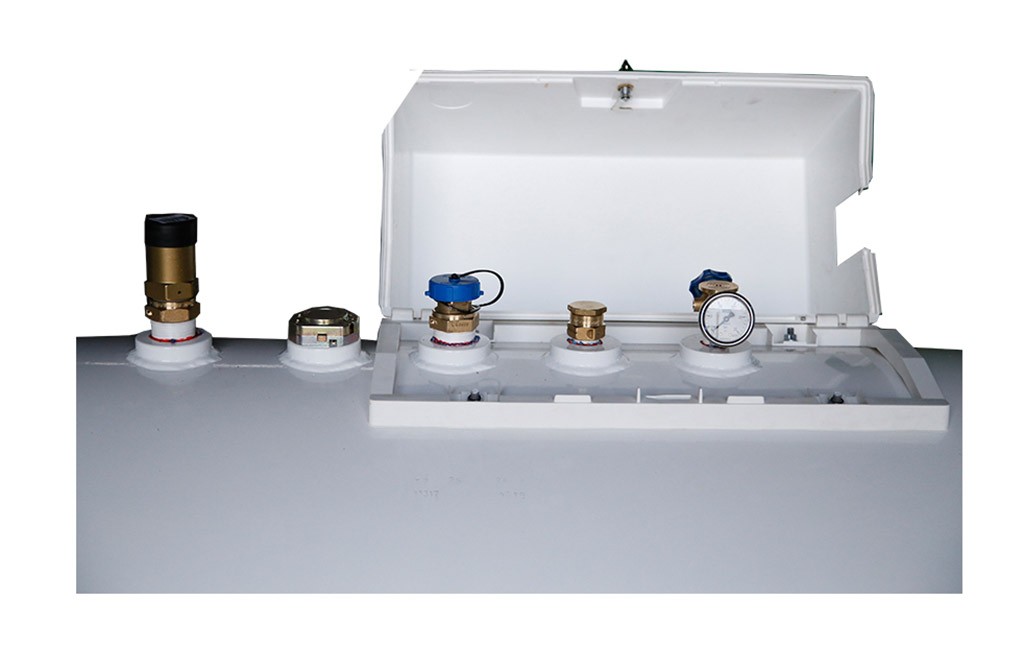

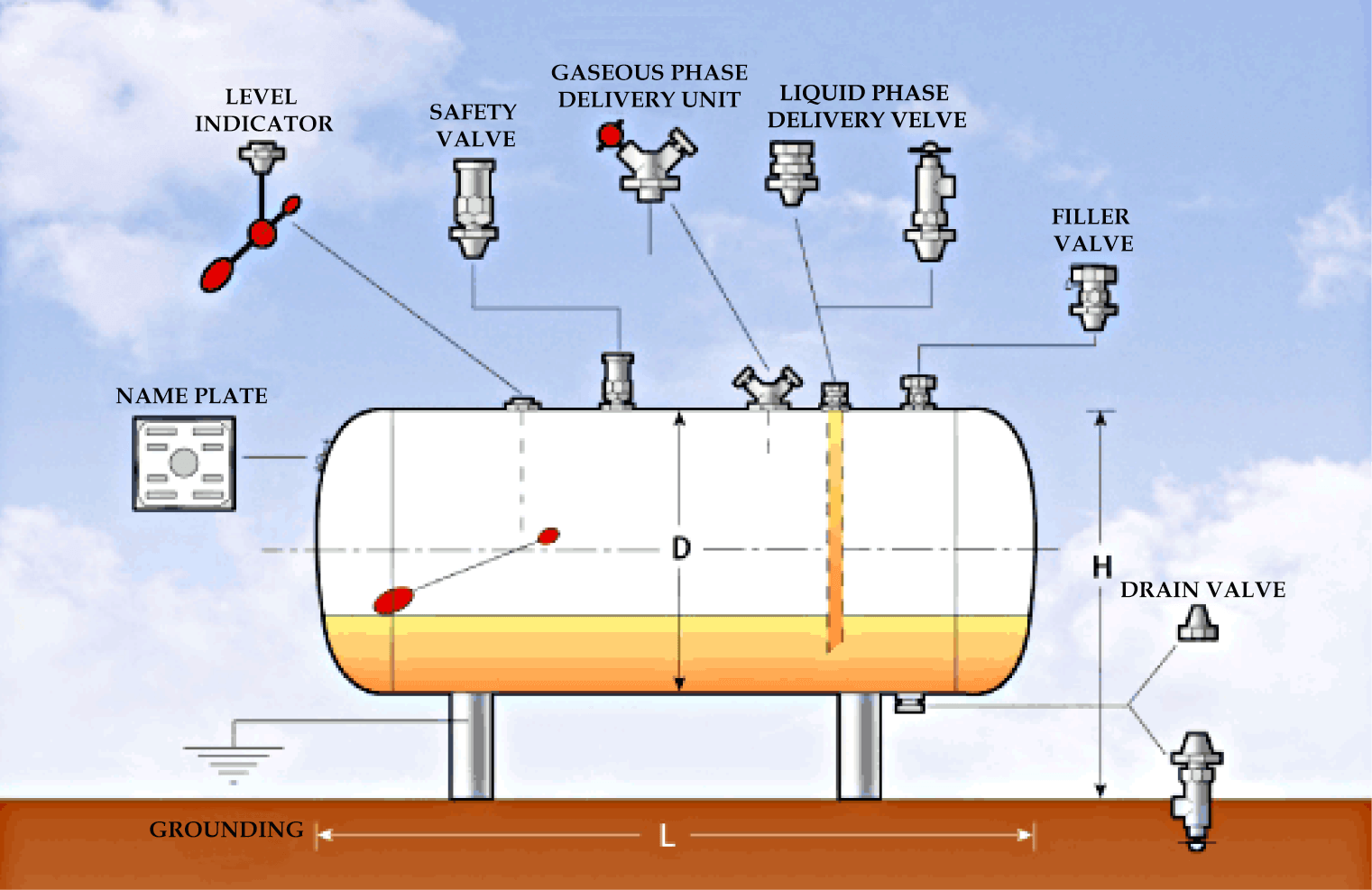

Every single stationary vessel undergoes 100% ultrasonic, magnetic particle, and radiographic weld inspections alongside formal hydrostatic testing supervised by independent bodies (TUV, SGS, or Bureau Veritas). Tanks are dispatched fully assembled with standard instrumentation including magnetic level indicators, multi-point relief valves, and structural lifting lugs ready for site rigging.
