Premium Global Solution

High-Insulation PVC Architectural Systems

CFM Export supplies premium-grade PVC door and window systems engineered with multi-chamber lead-free profiles. Designed to meet challenging international energy efficiency standards, our window matrices deliver exceptional thermal insulation, superior acoustic dampening, and advanced structural resistance against high wind loads.

Technical Framework & Specifications

• Profile Geometry: 60mm to 80mm depth options featuring 5 to 7 insulation chambers with integrated EPDM synthetic weather gaskets.
• Steel Reinforcement: Hot-dip galvanized structural zinc-coated steel cores running continuously inside the profiles to eliminate thermal warping risks.

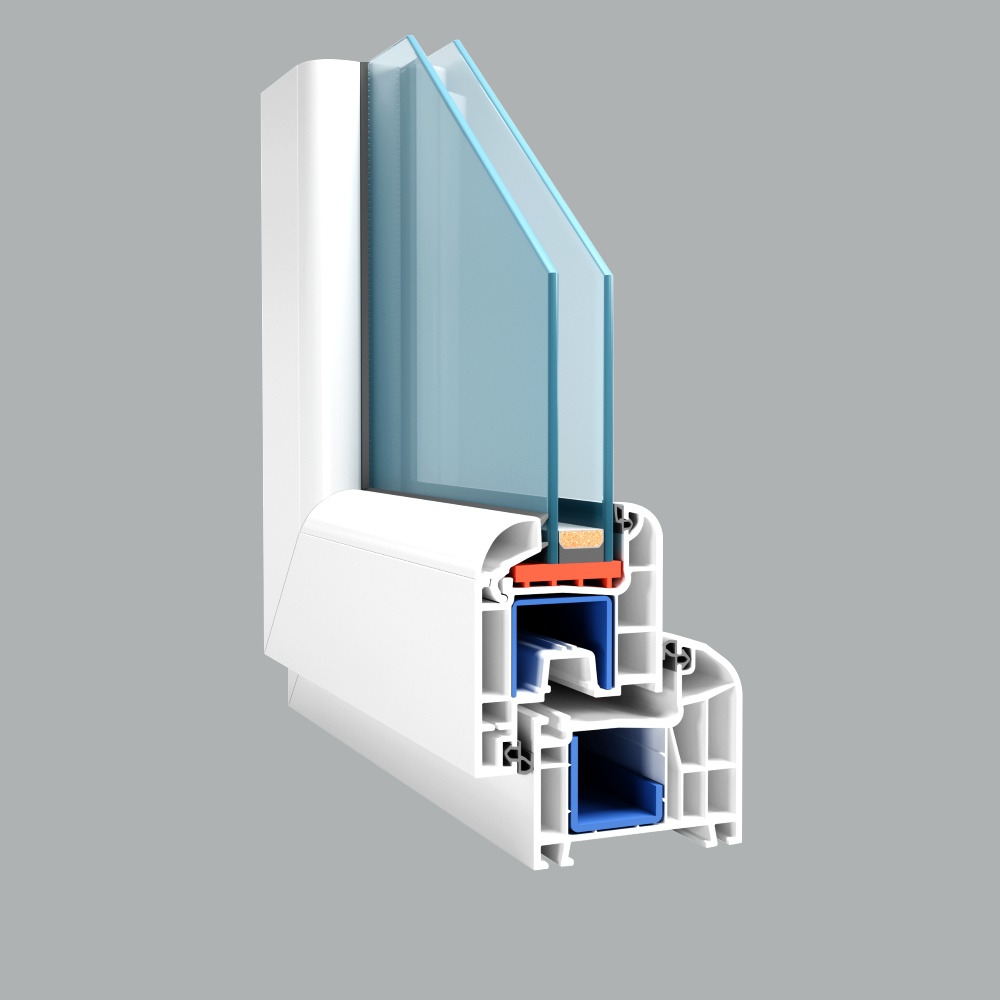

• Glazing Capabilities: Supports double and triple insulating glass units (IGUs) up to 44mm thickness, optimized with Low-E coatings and Argon gas fills.

Export Packaging & Rigging Standards

Completed frames are wrapped in protective surface films and arranged on custom-built heavy-duty wooden A-frame pallets. Corner guards and perimeter tension strapping guarantee absolute glass and frame stabilization inside shipping containers during sea transit.
